Peter Taboada
A Spanish manufacturer specializing in the design and manufacture of water treatment and purification systems for maritime, industrial, food, health, pharmaceutical, hotel, residential, and various other fields. Currently, they provide a wide range of services related to water treatment, from technical advice on the design of specific projects to the maintenance and operation of plants.
逆浸透膜海水淡水化装置
The PetseaRo® reverse osmosis seawater desalination system is designed to withstand the most demanding operating conditions (24 hours/365 days) in marine and industrial environments. It is adopted worldwide in offshore platforms, vessels, submarines, and land-based facilities. We also manufacture auxiliary systems such as optional membrane cleaning systems (CIP), remineralization filters, and UV systems in-house.
- A highly reliable system
- Peter Taboada's products meet both stringent quality control and international manufacturing standards (ISO9001/CE mark certified) and are manufactured using the highest quality components. Factory tests are conducted according to guidelines under severe conditions (low temperature, high temperature, vibration, marine environment, etc.). In addition, close cooperation between the manufacturing and R&D departments enables continuous improvement of water treatment systems.
- Long-Life Stainless Steel Skids
- By using stainless steel as the main material for skids, high corrosion resistance and durability are achieved, providing stable performance even in harsh environments. Stainless steel skid water makers are high-performance water treatment solutions with excellent durability, hygiene, and flexibility that can accommodate various applications and environments. By comprehensively considering performance, configuration, and ease of maintenance according to the application, it is possible to achieve stable freshwater supply, reduce operating costs, and address environmental concerns.
- Production System with Expandable Capacity
- The system has a wide range of applications, can adapt to specific needs or all water production, and can also be containerized. Freshwater production from seawater ranges from 1.8 to 25,000m³ per day, with water quality ranging from freshwater (TDS < 500 ppm) to pure water (TDS < 10 ppm), which can be produced by adjusting the number of RO stages according to the application.
- Compact System and Easy Maintenance
- Custom Units Designed According to Customer Specifications
Reverse osmosis (RO) membrane water makers and conventional vacuum evaporation water makers each have their own advantages and disadvantages as follows. We recommend selecting either reverse osmosis or evaporation type depending on the water usage purpose and consumption. The biggest advantage of the reverse osmosis type is that no heat source is required. It is possible to produce water even when the ship is docked (while the main engine is stopped). Furthermore, in cases where large amounts of fresh water are needed, such as on cruise ships, with the reverse osmosis type, large capacity can be easily achieved simply by increasing the RO membrane and pump capacity, and the advantages, including cost benefits, become greater as the capacity increases.
| Reverse Osmosis Membrane Water Maker (RO Type) | Vacuum Evaporation Water Maker | |
|---|---|---|
| Power Source | Electricity only | Electricity and heat source |
| Output Adjustment | Possible | Not possible |
| Installation Location | Easy, no location restrictions | Requires connection to main engine jacket cooler water, must be installed near the main engine, location restrictions apply |
| Expandability | Layout can be modified with custom design | Layout cannot be modified with standard design |
| Water Quality | Affected by seawater salinity and temperature, but can purify water to around 500ppm with single-stage RO, usable as drinking water. Can also be used as boiler water (requires 2-stage RO, higher cost) | Around 5-10ppm, can be used as boiler water. For drinking water, mineral injection is necessary. |
| pH Value | Low pH freshwater | Lower than RO type and more corrosive |
| Replacement Parts | None except RO membrane and filters | Tubes, nozzles, etc. |
| Operating Cost | Low seawater temperature: low cost High seawater temperature: high cost | Low seawater temperature: high cost High seawater temperature: low cost |
| Cost | Reasonable | High capacity is expensive, not suitable for high consumption like cruise ships |

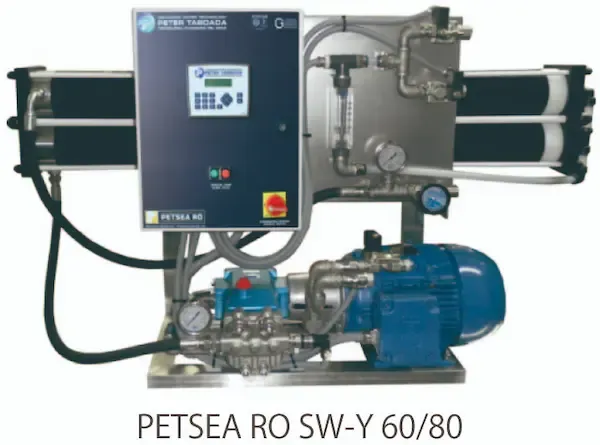

PETSEA RO SW-Y COMPACT SERIES (1.8 - 20m³/day)
The 'PETSEA RO SW-Y' is designed to withstand the most severe operating conditions in marine and industrial environments. This system can produce water of the highest quality, with production capacity ranging from 1.8 m³/day to 20 m³/day.
| Model | Production | Size | Increasable |
|---|---|---|---|
| SW-Y 10/8 | 1.8 m³/day | 1205x365x725 | 20/3430/52 |
| SW-Y 20/34 | 3.4 m³/day | 1205x365x725 | 30/52 |
| SW-Y 30/52 | 5.2 m³/day | 1205x365x725 | |
| SW-Y 40/50 | 5.0 m³/day | 1280x395x750 | 60/80 |
| SW-Y 60/80 | 8.0 m³/day | 1280x395x750 | |
| SW-Y 80/90 | 9.0 m³/day | 1375x580x1200 | 110/120130/150 |
| SW-Y 110/120 | 12 m³/day | 1375x580x1200 | 130/150 |
| SW-Y 130/150 | 15 m³/day | 1375x580x1200 | |
| SW-Y 200 | 20 m³/day | 1375x540x1450 |

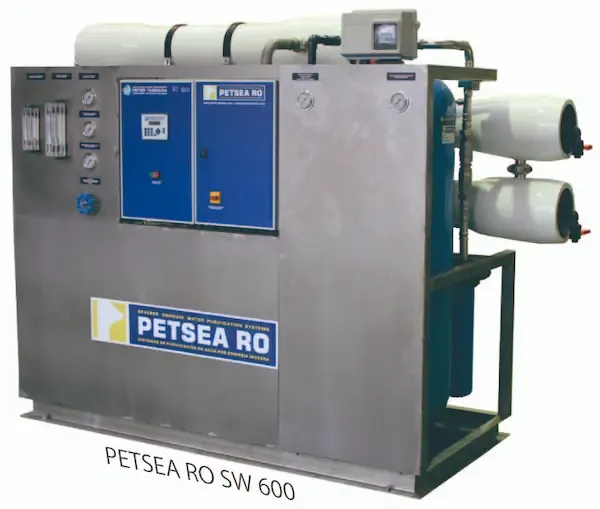

PETSEA RO SW-Y MEDIUM RENGE SERIES (1.8 - 20m³/day)
The 'PETSEA RO SW-Y' is designed to withstand the most severe operating conditions in marine and industrial environments. This system can produce water of the highest quality, with production capacity ranging from 30 m³/day to 200 m³/day.
| Model | Production | Size | Increasable |
|---|---|---|---|
| SW 300 | 30 m³/day | L2800x950x1900 | 400500600 |
| SW 400 | 40 m³/day | L2800x950x1900 | 500600 |
| SW 500 | 50 m³/day | L2800x950x1900 | 600 |
| SW 600 | 60 m³/day | L2800x950x1900 | |
| SW 800 | 80 m³/day | L3890x1200x2150 | 1000 |
| SW 1000 | 100 m³/day | L3890x1200x2150 | |
| SW 1200 | 120 m³/day | L3700x1280x2230 | |
| SW 1500 | 150 m³/day | L3745x1300x2115 | |
| SW 2000 | 200 m³/day | L4780x1500x2500 |

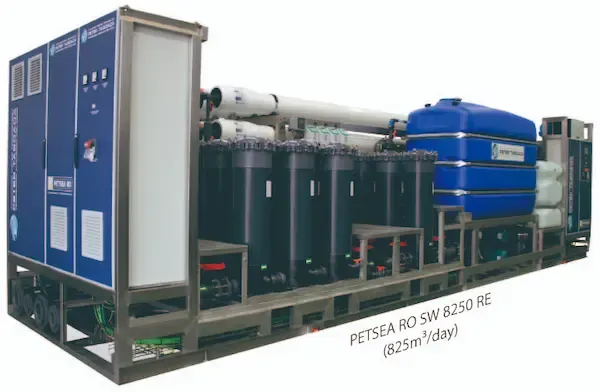

PETSEA RO SW-RE & SW-TR ENERGY RECOVERY SERIES (150 ~ 25,000m³/day)
Energy recovery systems can be installed in large reverse osmosis seawater desalination plants, significantly reducing equipment configuration, materials, and power consumption. Energy recovery systems are an innovative approach using the latest technology, consisting of high-efficiency pump systems that save energy by reducing power consumption without decreasing overall efficiency, combining pressure exchangers and booster pumps. Using this equipment, the size of high-pressure pumps can be reduced, saving up to 60% of power.

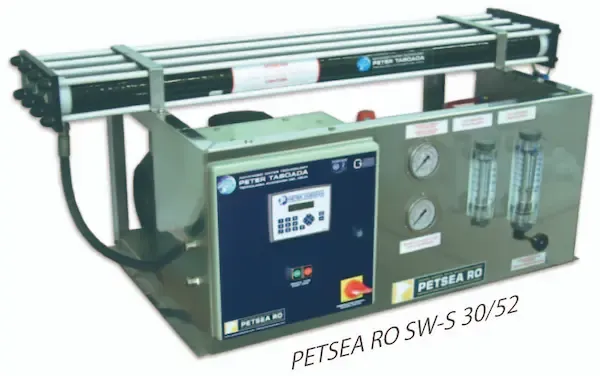

PETSEA RO SW-S YACHT SERIES (1.8~20m³/day)
It is optimally designed for leisure boats. It can produce freshwater with TDS < 500ppm from seawater, and we offer models with production capacities ranging from 1.8 to 15m³/day.
| Model | Production | Size | Increasable |
|---|---|---|---|
| SW-S 10/8 | 1.8 m³/day | 1100x462x430 | 20/3430/52 |
| SW-S 20/34 | 3.4 m³/day | 1100x462x430 | 30/52 |
| SW-S 30/52 | 5.2 m³/day | 1100x462x430 | |
| SW-S 40/50 | 5.0 m³/day | 1275x655x490 | 60/80 |
| SW-S 60/80 | 8.0 m³/day | 1275x655x490 | |
| SW-S 80/90 | 9.0 m³/day | 1245x720x665 | 110/120130/150 |
| SW-S 110/120 | 12 m³/day | 1245x720x665 | 130/150 |
| SW-S 130/150 | 15 m³/day | 1245x720x665 |
